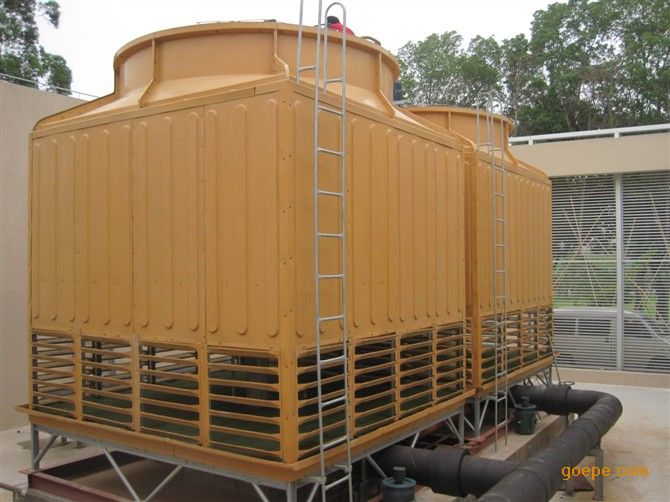

ZXF series square counter current type glass steel cooling tower has the following characteristics:
1 tower body glass fiber reinforced plastic parts
Using high water resistance of unsaturated polyester resin and the regular production of large glass fiber cloth, glass fiber mat, the external surface of the tower with anti UV, anti aging coating, surface uniform colors, bright colors, bright and clean.
2 tower body steel structure
With various types of customized steel for the frame, light weight, high strength, good rigidity, open and shut down when the resonance is weak, good stability. All steel structure parts are treated by pickling and hot dip galvanizing, good corrosion resistance and corrosion protection, and ensure the cooling tower operating normally in the corresponding environment.
3 column core packing
Using high quality PVC flat blister made, flat surface processing into a matte type, hydrophilic plain film is better than the smooth surface of the water, the water formed a thin film on the surface of the packing, in contact with air more fully. The bellows designed for composite packing design of square cooling tower, wind resistance, high heat exchange efficiency, small wind resistance, especially the limited space environment under the conditions of superiority. Jiangsu glass fiber reinforced plastic cooling tower
4 motor
Special motor for fully enclosed outdoor type cooling tower. The shaft extension end of the use of professional waterproof apron, effective solution to the water vapor along the shaft extension end into the motor internal problems, the protection level of IP55; the motor shaft chrome, F class.
5 fan
With low speed and large length, leaf width Aluminum Alloy famous fan. With the characteristics of uniform wind speed, low noise, low vortex, high efficiency. The fan can according to the different climatic conditions of adjusting the blade angle, therefore, not only ensure the cooling tower can meet the operation requirements in harsh conditions, and in order to achieve the purpose of energy saving in the proper season adjust blade angle.
6 reduction drive part
Adopting integral seal reduction system. The belt gear box bearing for the Japanese NSK or NTN brand, and is provided with a multi-layer waterproof protection system, good weather resistance, but also a special filling mouth, very easy daily maintenance and maintenance. Transmission belt is selected from Japan imported brands, waterproof, non slip, long service life.
7 water distribution system
Square counterflow type glass steel cooling tower adopts the water distribution system of fixed tube, with three splash water distribution nozzle. Has the characteristics of uniform water distribution, low water pressure, no blockage, the water dispersed after the cloth onto the packing, to ensure the full operation of heat exchange.
8 water receiving system
Square counterflow cooling tower with hyperbolic arch of glass steel water collector, can effectively prevent the water cooling tower, is currently the most ideal water collection system. Jiangsu glass fiber reinforced plastic cooling tower company
