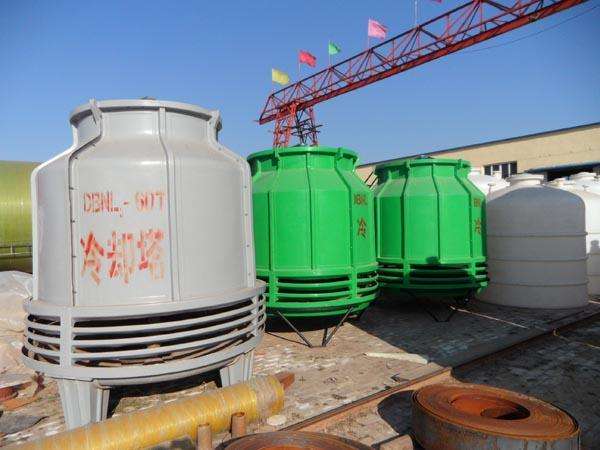

Glass steel cooling tower is the best partner of water-cooled chiller. The tower body is made of glass fiber reinforced plastics, which has the advantages of light weight, corrosion resistance, convenient installation and so on. Whether you are using water cooling type cold water machine, or water cooled screw chiller, cooling tower are required to provide the Everfount circulating cooling water. The working principle of glass steel cooling tower
Water spraying device of glass steel cooling tower is a film, usually with hard PVC plastic plate 0.3-0.5mm thick pressing, mainly for the corrugated type double bump, divided into one or more layers on the cooling tower of the tower body. And the water down, it is along the surface of plastic film from top to bottom in the form of film flow. Water distribution system is a water distributor for rotary water distributor, side of each branch pipe is provided with many small holes, it is water, each branch pipe is pressed into the water through the pump, when the water is sprayed out from the holes in each branch pipe, the reaction force generated will make rotary water distributor, so as to achieve the purpose of uniform replenishment.
The cooling tower of glass fiber reinforced plastics is an axial flow fan, which is arranged on the top of the tower. Usually, the axial flow fan for cooling tower supporting the volume to be big, the pressure is small, so as to reduce the loss of water blown. The air is sucked from the window of the upper part of the water collecting tank and is discharged from the top of the tower through the packing layer. After cooling water directly into the sump, and exclude from the outlet pipe for recycling use.
When we choose the water-cooled cooling tower, we must pay attention to its technical parameters, that is, the temperature of the circulating water into the tower, the temperature of the circulating water tower, as well as the ambient wet bulb temperature, etc.. In order to solve the problem of matching the cooling tower, a water east Yuejin machine with the standard for selection of cooling tower, glass steel cooling tower reference. The working principle of glass steel cooling tower
