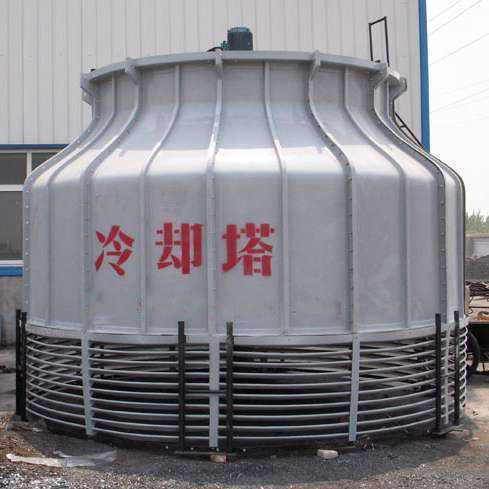

Glass fiber reinforced plastic cooling tower
Glass steel cooling tower by a cooling tower, fan assembly, a motor assembly, deep dish, splash water device, water distribution device, pipeline system, support, delivery between parts of the connecting fasteners, gasket and all the necessary parts and materials. Glass fiber reinforced plastic cooling tower structure
Glass steel cooling tower fan
The ventilation tube is mostly a reinforced concrete hyperbolic revolving shell, which has good structural mechanics and fluid mechanics characteristics. The lower edge of the shell is supported on the equidistant V shape or X shape inclined strut to form the air inlet of the cooling tower. The load of the shell is transferred to the foundation on the inclined strut. The foundation is made into an annular foundation with an inclined surface to bear the partial ring tension which is transmitted by the inclined strut, and can also be used as a separate single foundation or pile foundation.
Ventilation tube throat diameter when calculating shell stability, the thin shell wall, thereby to constitute a gradual increase in the diameter of the air flow outlet diffuser, top is provided with a rigid ring below throat by hyperbolic expanding gradually, under the shell wall is thickened, the formation of a certain stiffness of ring beam. The ventilation tube can also be made into a frustum of a cone or a combination of conical shell, or polygonal tower steel frame outsourcing wood plate or asbestos cement sheeting. Germany uses a cable network structure of the tower in schmehausen nuclear power plant is a 146 meter high dry cooling tower, outsourcing aluminum plate, outsourcing aluminum shield, has good seismic and wind resistance performance. Glass fiber reinforced plastic cooling tower structure
